Series 63 Inset 165° Clip On Hinge On 35mm Cup Diameter

Our Series 63 Inset 165° Clip On Hinge can be used for furniture doors in front of internal drawers, Lazy Susan corner cabinets, and all other furniture constructions where doors have to be opened widely. With an additional mounting plate for face frame applications, this hinge is dual purpose for frameless and face frame cabinetry.

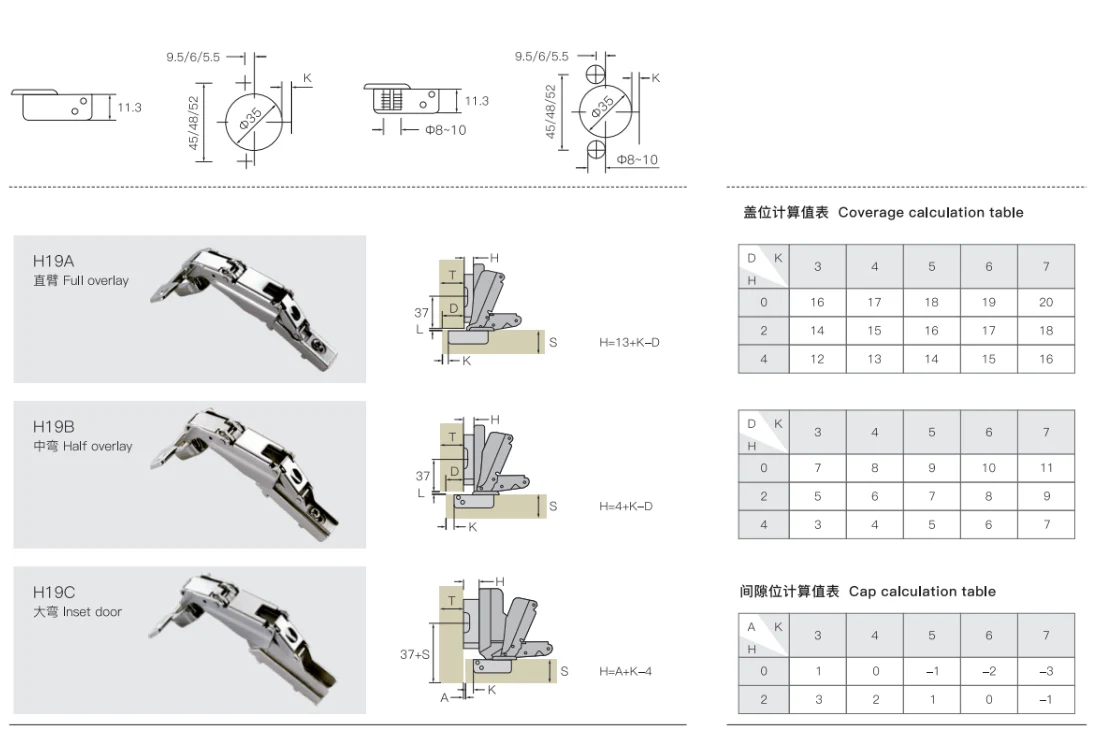

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Application: Inset
• Adjustment: +/- 3mm
• Opening Angle: 165 degrees
• Door Thickness: 14 - 22mm
• Side Thickness: N/A
• Cup Diameter: 35mm
• Hinge Type: Clip On
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way
• Plate: 2mm Plate
• Pack Contents: 2 Hinges, 2 Plates





Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
